2006 Wilson CF-900 — 48′ × 102″ Flatbed

Condition — Visual Findings (from supplied photos)

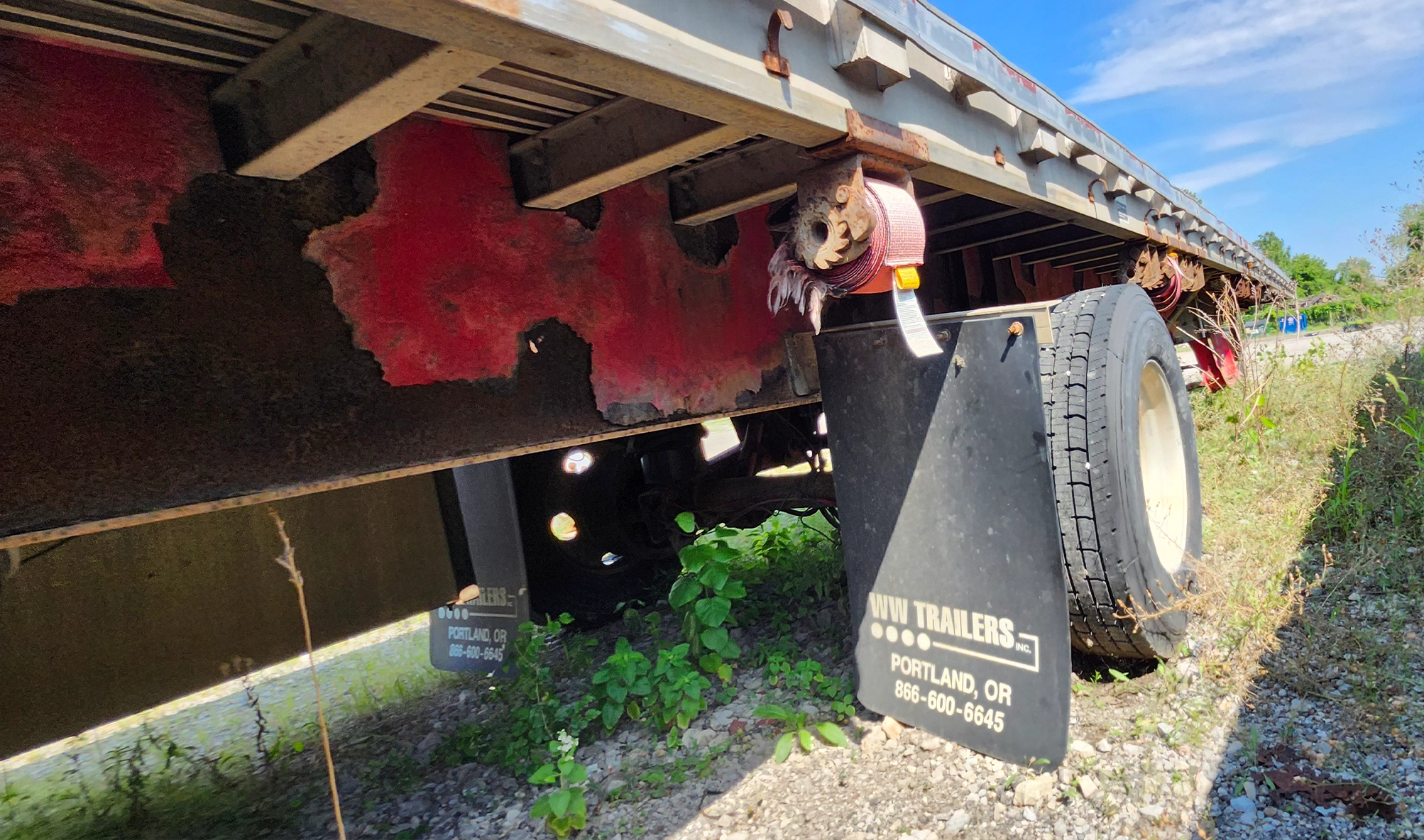

Sides, Frame & Undercarriage

• Significant cosmetic corrosion on side rails and crossmembers; red paint peeling across long sections exposing oxidized steel.
• WTJ/Wilson branding cutouts visible on web; no cracks seen in the photographed areas of main beams.
• Surface rust on suspension hangers, gussets, and landing-gear bracing.

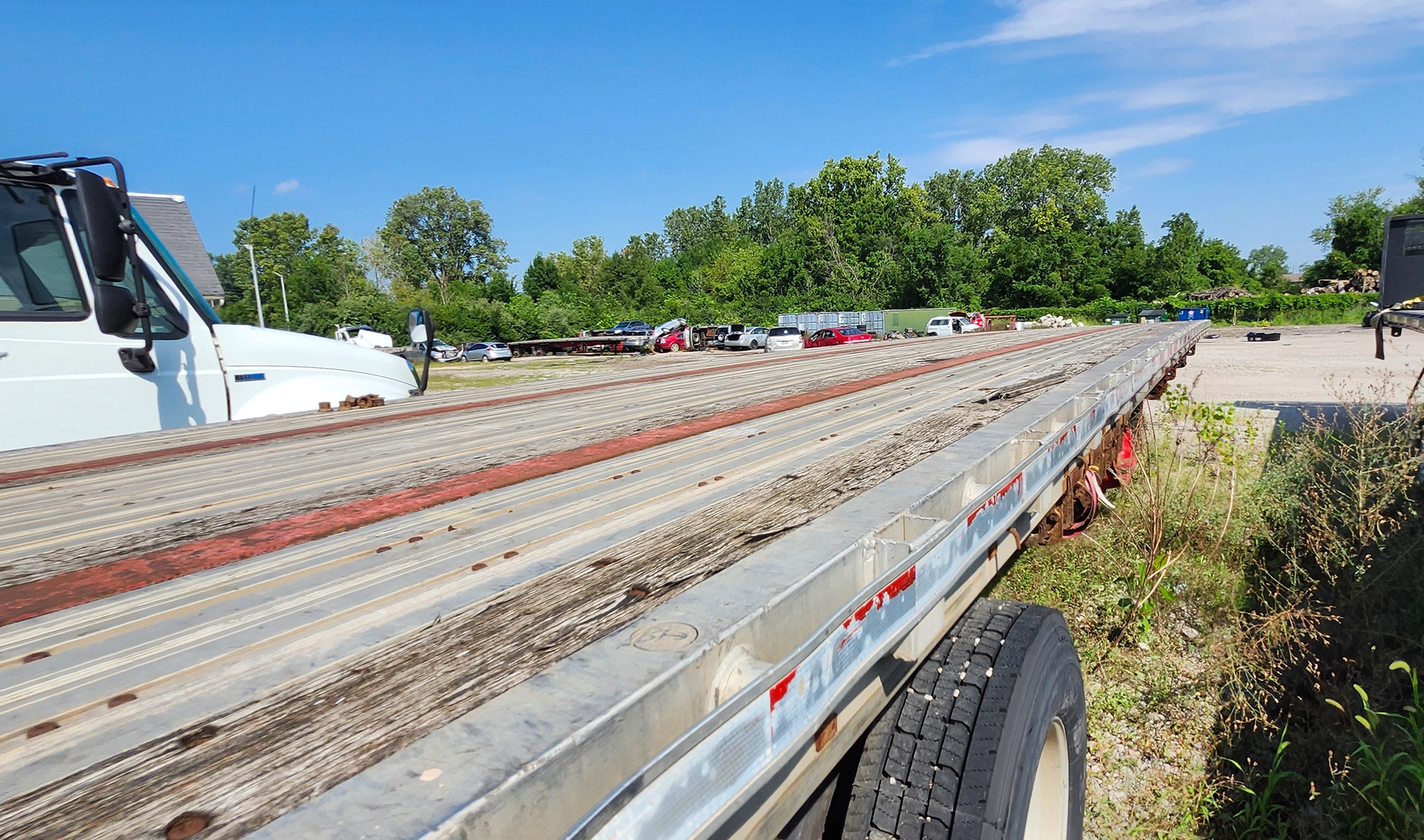

Deck

• Wood deck uniformly weathered; checking/splitting present typical of age.
• Top-flange rub areas show paint loss; stake pockets and winch tracks present along rails.
• No fully missing boards seen in the provided angles; expect localized soft spots to be assessed in person.

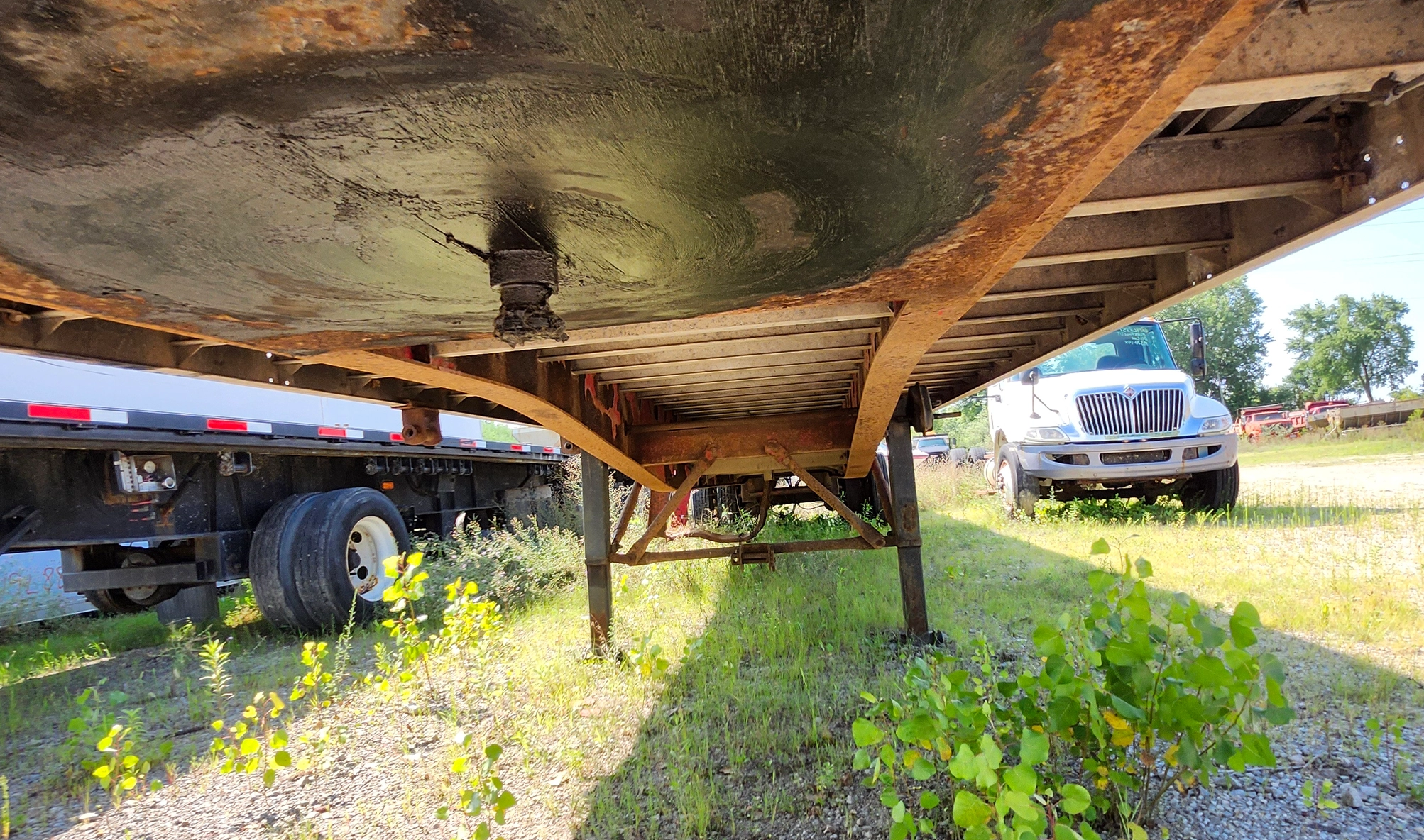

Kingpin & Upper Coupler

• Upper plate shows pitting and scuffing; kingpin intact.
• Grease residue and rust streaks around plate welds; normal for age.

Landing Gear

• Both legs straight and fully extended in photos; footpads and outer tubes show corrosion.
• Crank gearbox present; cosmetic seep at housing face.

Axles, Wheel Ends & Tires

• Air springs and brake chambers intact; drums and hubs oxidized.
• Mixed tire presence/condition in the yard; some positions pictured mounted, others appear removed on adjacent units. Verify tire count at inspection.
• Lug hardware corroded; several grease/dust caps weathered.

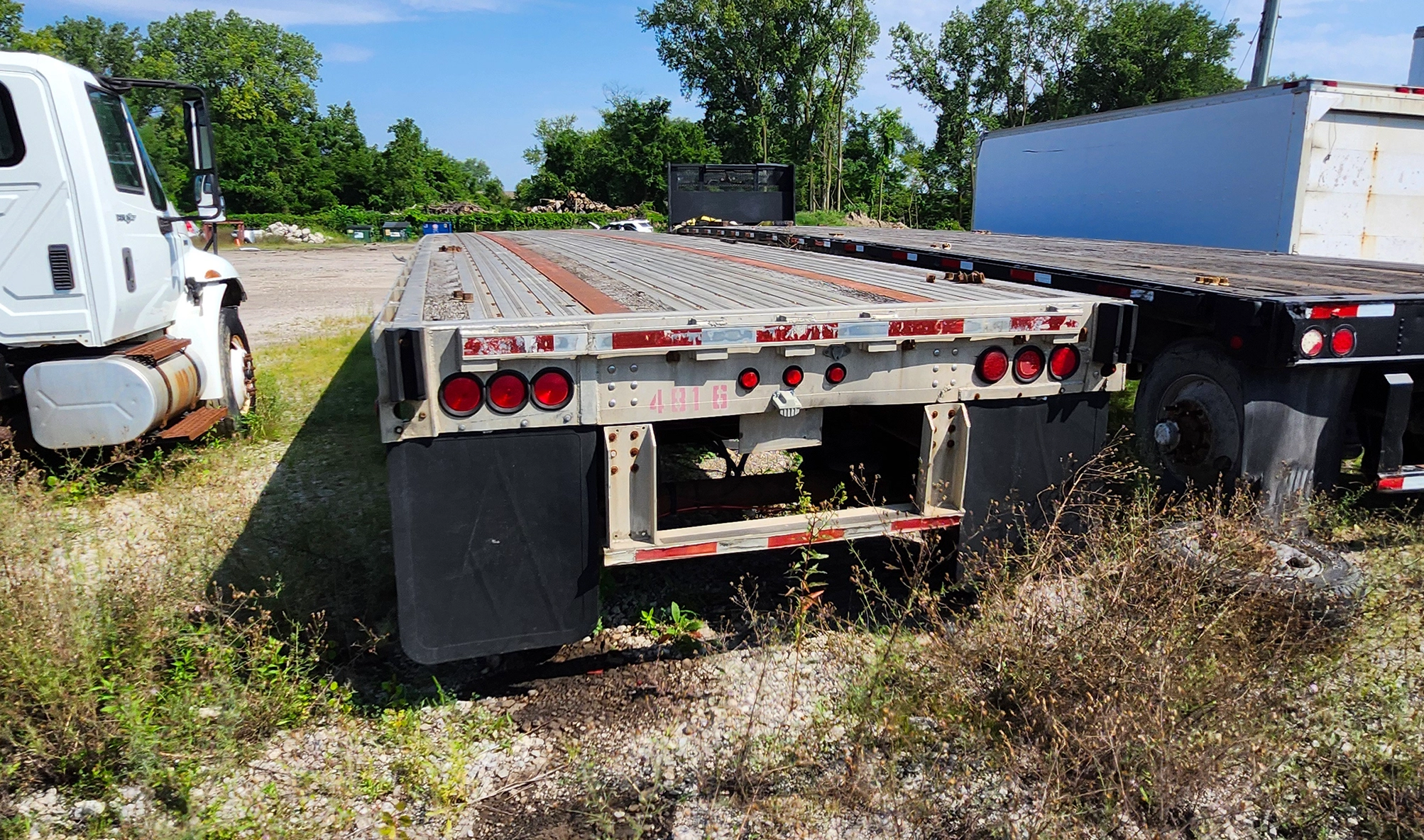

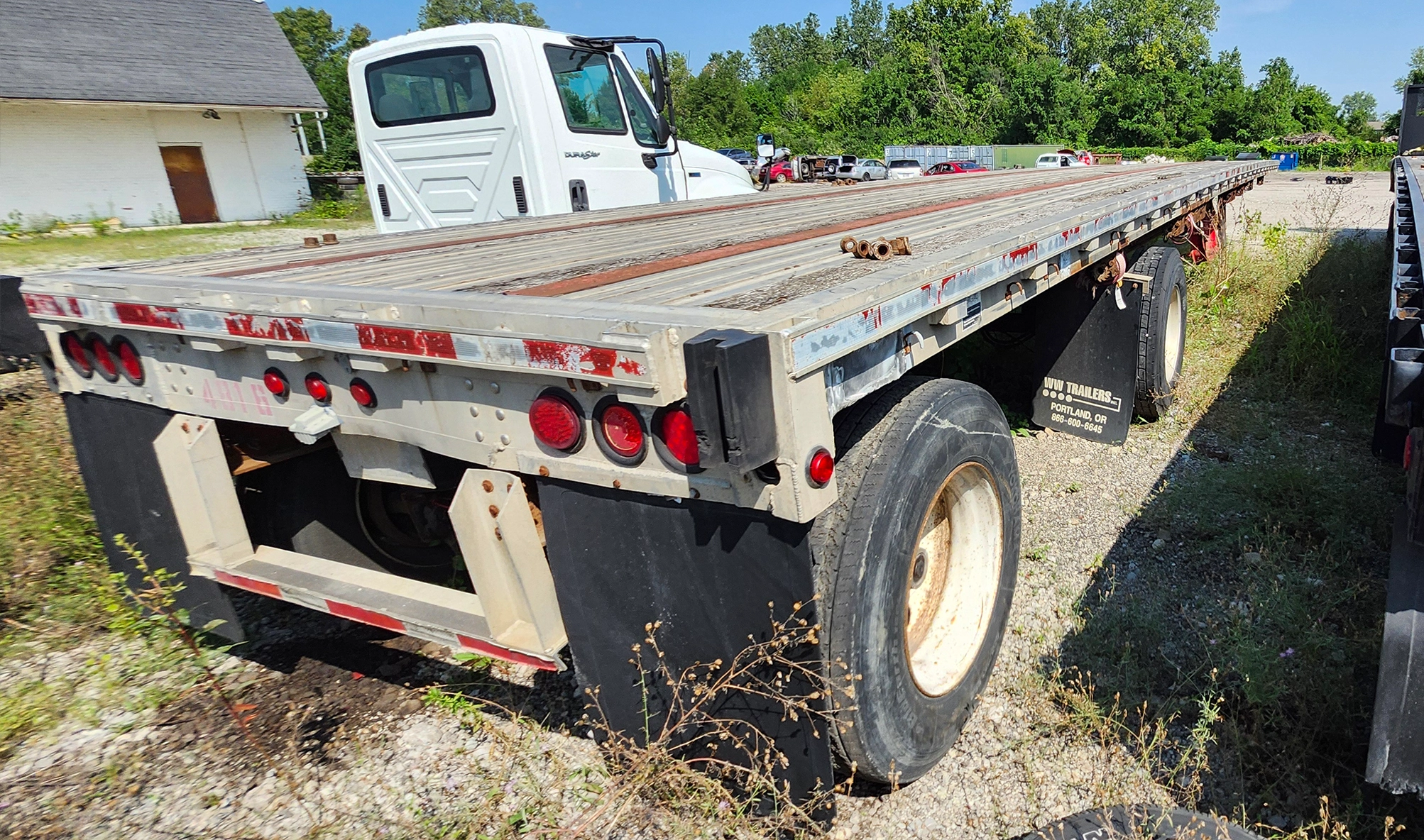

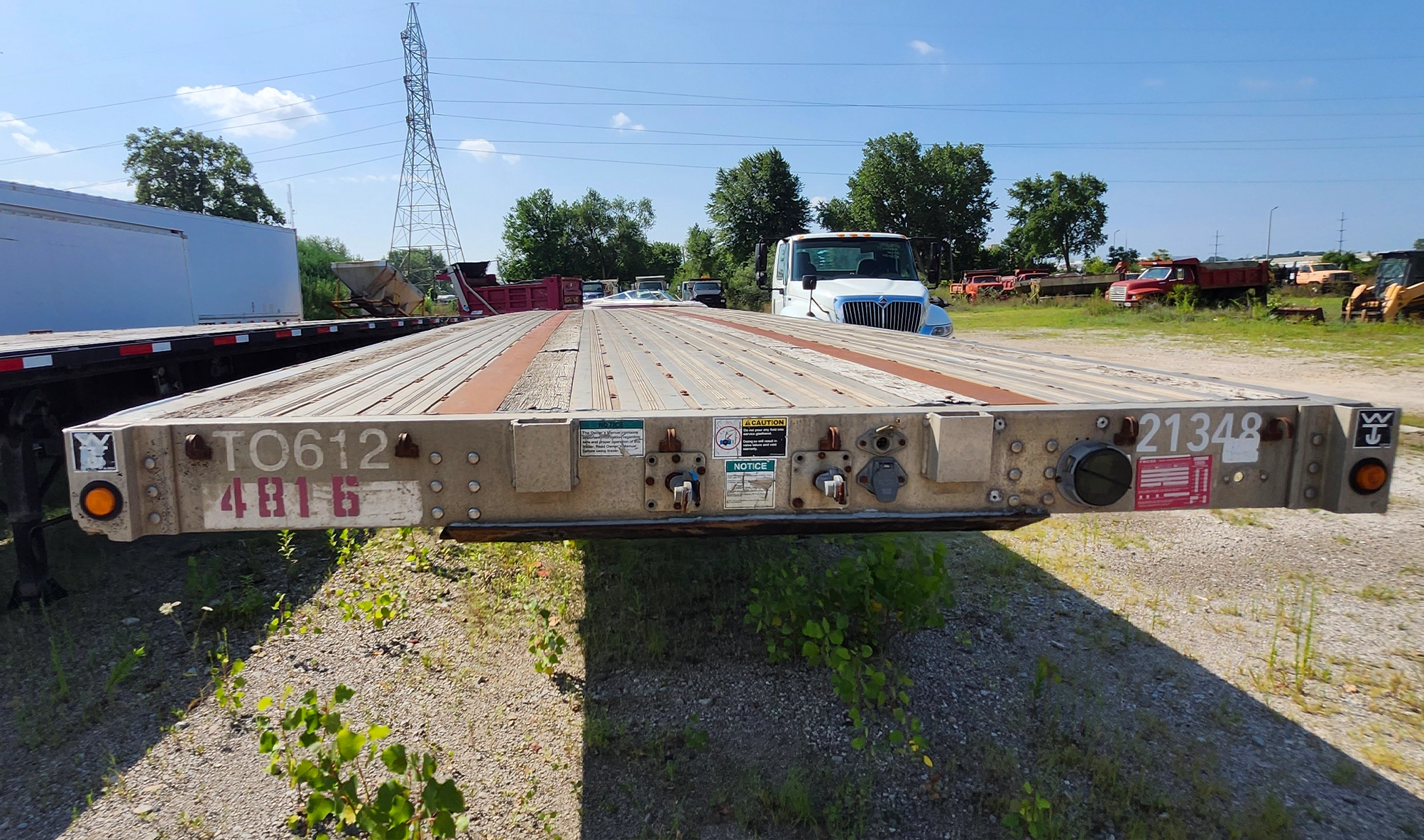

Lights, Wiring & Markings

• Rear LED clusters and side markers present; wiring visible near tail section.
• DOT conspicuity tape along rails; sections dulled/peeling.
• 7-way nose plug present; electrical operation not tested.

Notes reflect what is visible in the supplied photos. Operational tests (lights, brake function, air system hold, ABS, etc.) were not performed and are recommended before transport.

Photos

Buyer Uses / How to Approach This Unit

• Rebuild path: media blast or mechanical prep of rails/crossmembers; corrosion-inhibiting coating; electrical function test; tire/wheel-end service (bearings/seals as needed); brake inspection/adjust; selective deck board replacement; repaint.
• Core / Parts donor: landing-gear set, suspension/brake hardware, rub rails & pockets, winch tracks, toolbox.
• Deck donor: planks suitable for reuse or swaps on other platforms.

Included With Sale

• Trailer as pictured (as-is / where-is).
• Manufacturer and data plates present on frame web.
• Title/transfer documents per seller records at sale.

Inspection & Pickup

• Onsite inspection by appointment; bring a mechanic if desired.
• Buyer arranges transport; yard assistance available with notice.

Sold as-is / where-is with no warranty. Information reflects labels on the trailer and visible conditions in supplied photos at the time they were taken.
