At-a-Glance
VIN1GRDM00229H711537
ModelGPS-0024-00099
Year2009
TypeFlatbed / Platform
Dimensions48′ length × 102″ width
AxlesTandem (spread not confirmed in photos)
SuspensionAir-ride (air springs visible)
BrakesAir brakes (spring brake chambers present)
FrameSteel main beams; stake pockets & rub rails
DeckWood plank deck (intact; weathered)
Electrical7-way at nose; lamp clusters present
Landing GearDual-leg manual 2-speed; upright
Condition — Visual Findings (from supplied photos)
Frame & Undercarriage
- Main beams appear straight in provided angles; no visible cracks/buckling observed.
- Surface rust present across crossmembers, suspension brackets, and gussets.
- Paint/undercoat worn to bare metal in multiple underside areas.
Deck
- Wood planks intact; uniform weathering/darkening from exposure.
- Surface checking visible; seams show dirt accumulation.
- No missing boards visible in provided angles.
Kingpin & Upper Coupler
- Upper plate scuffed/pitted in wear zone.
- Rust streaks at weld seams around coupler plate.
Landing Gear
- Both legs upright and aligned.
- Corrosion on outer tubes/feet and crank housing; paint loss in high-contact areas.
Axles, Wheel Ends & Tires

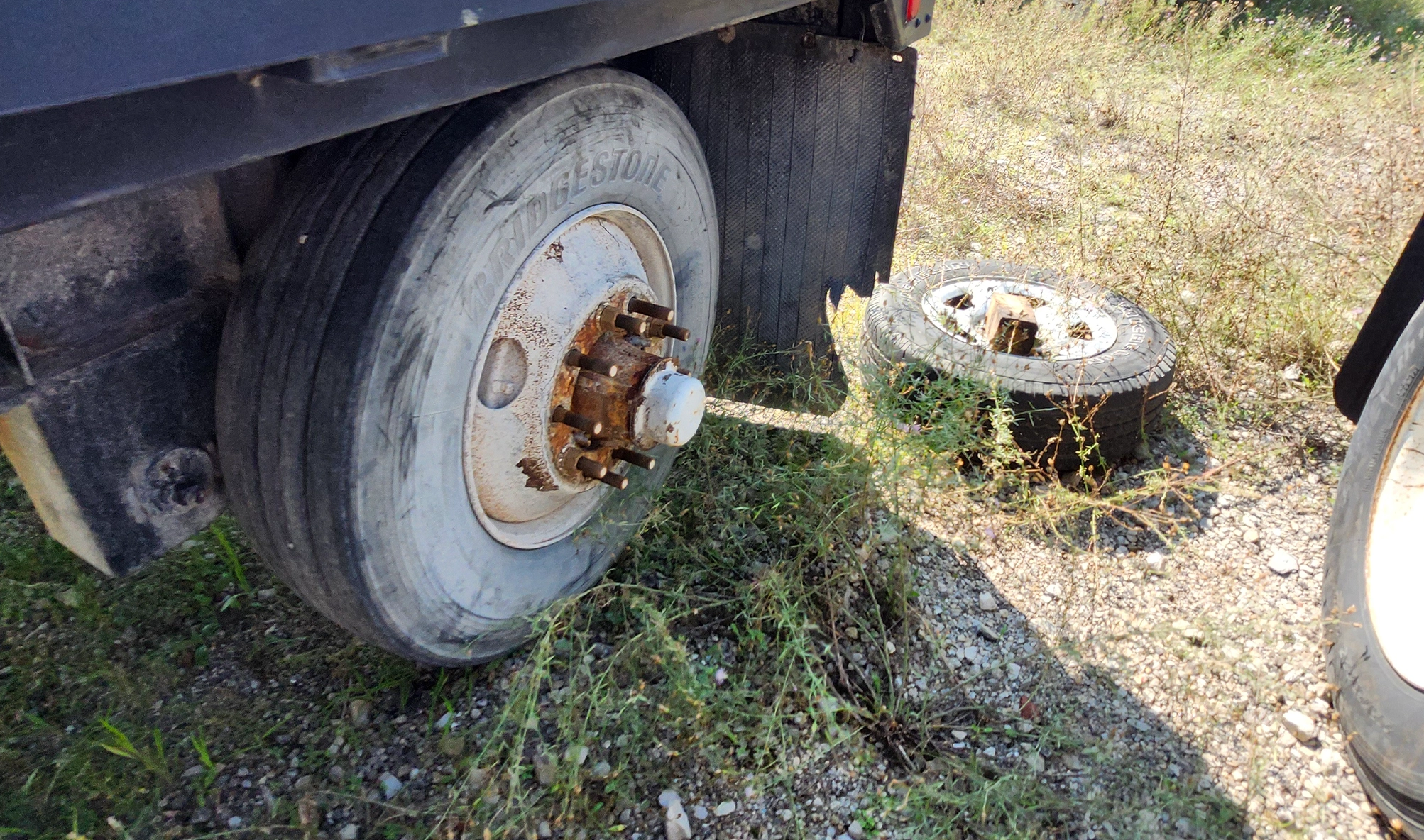

- Brake drums and hubs oxidized throughout.
- Some positions pictured without mounted tires.
- Several dust caps worn/absent; studs/nuts rusted.
Rails, Pockets, Lights & Markings
- Rub rails generally straight; typical scrapes from load handling.
- Stake pockets open/usable; paint worn at edges/welds.
- DOT conspicuity tape present; sections dulled/peeling.
- Lamp lenses present; electrical function not tested.
Notes reflect the photos provided. Buyers should verify operational checks (lights, brakes, air system) onsite.

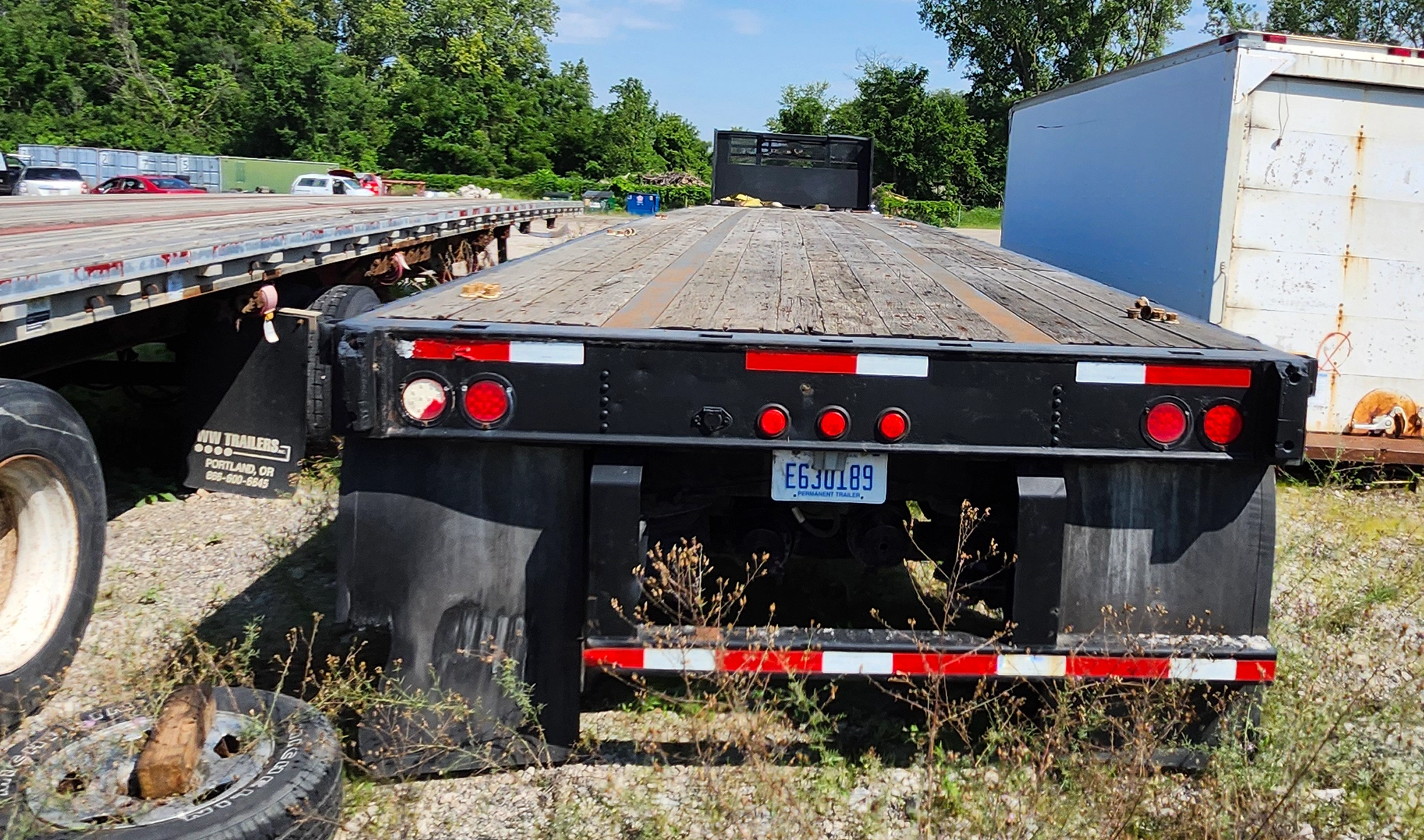

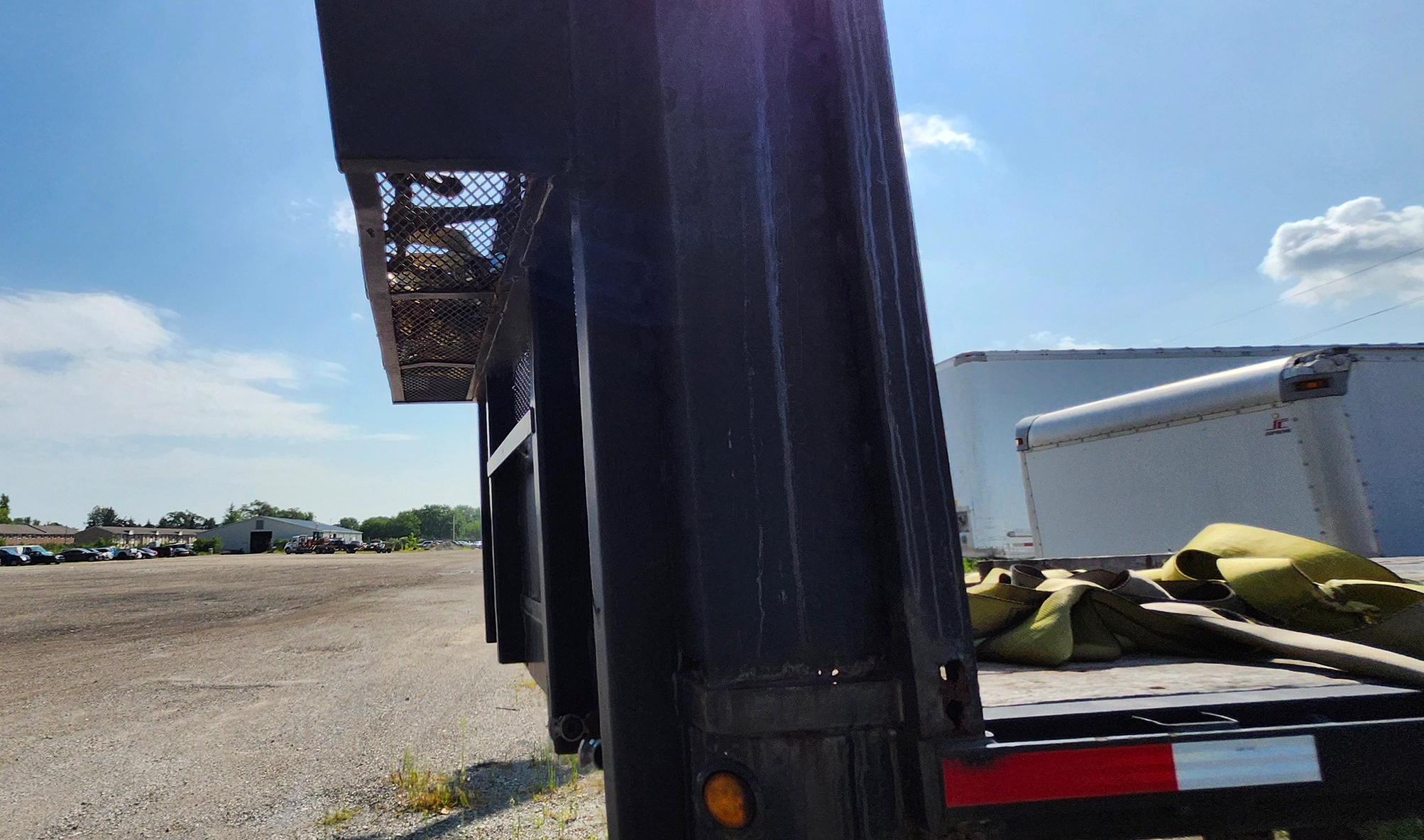

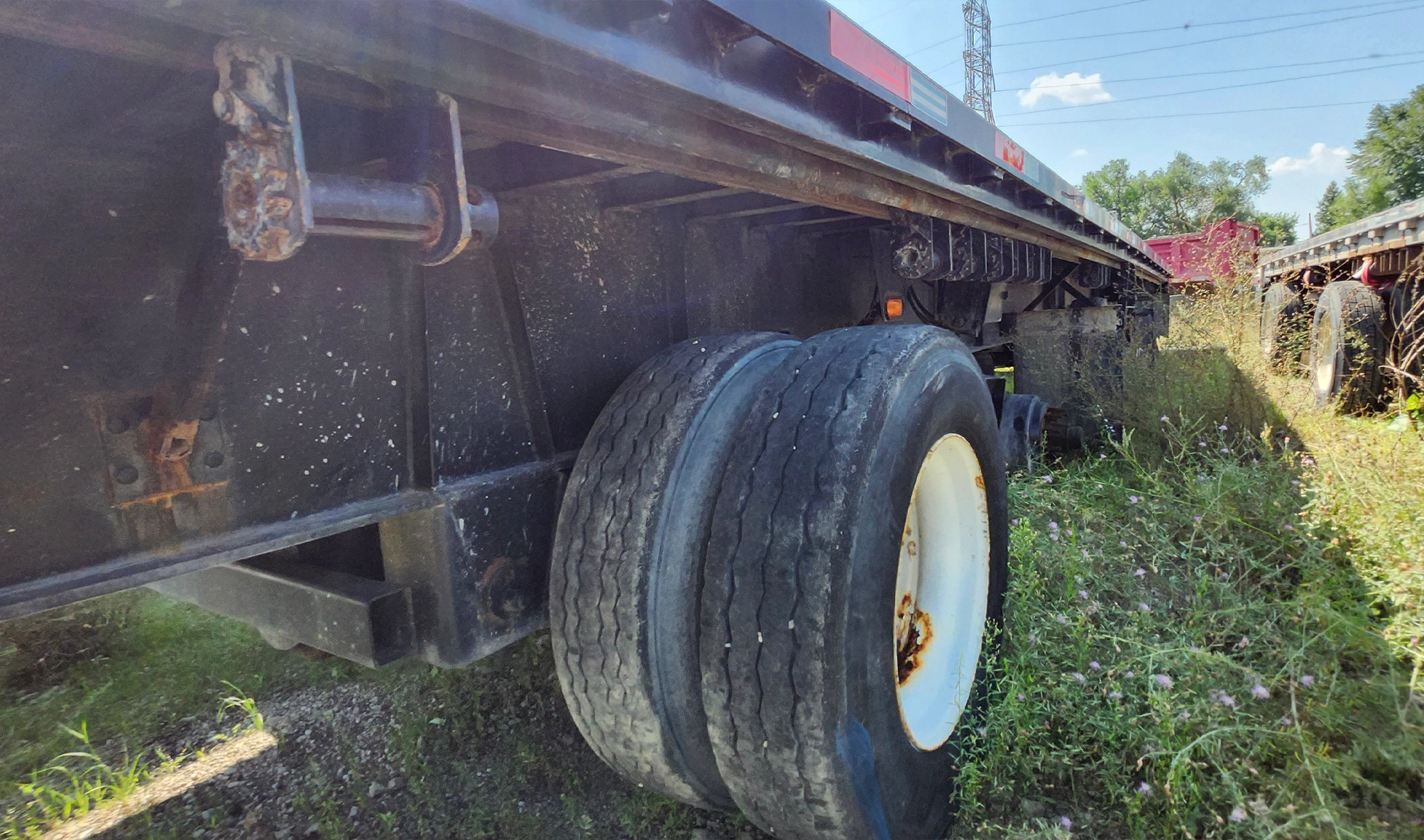

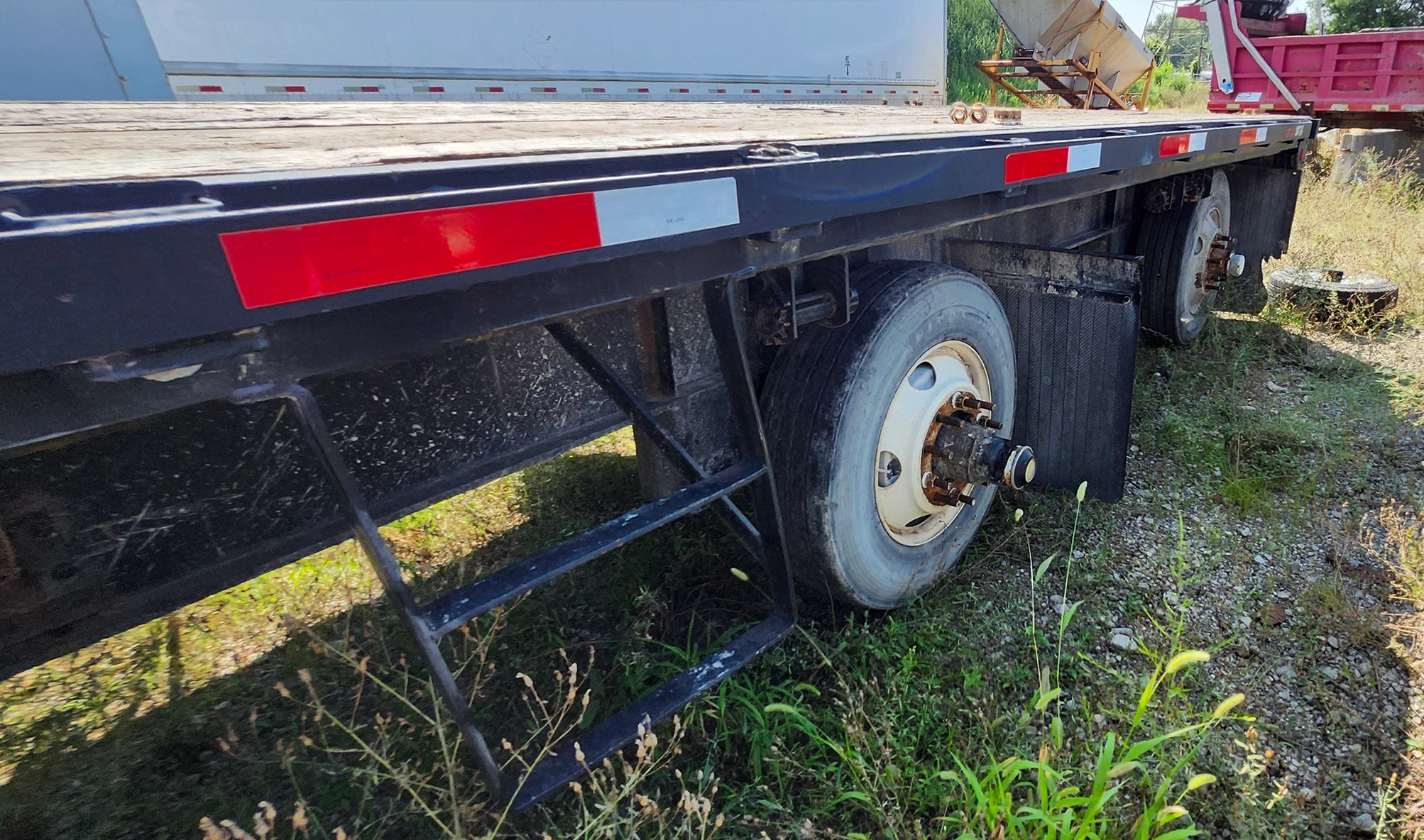

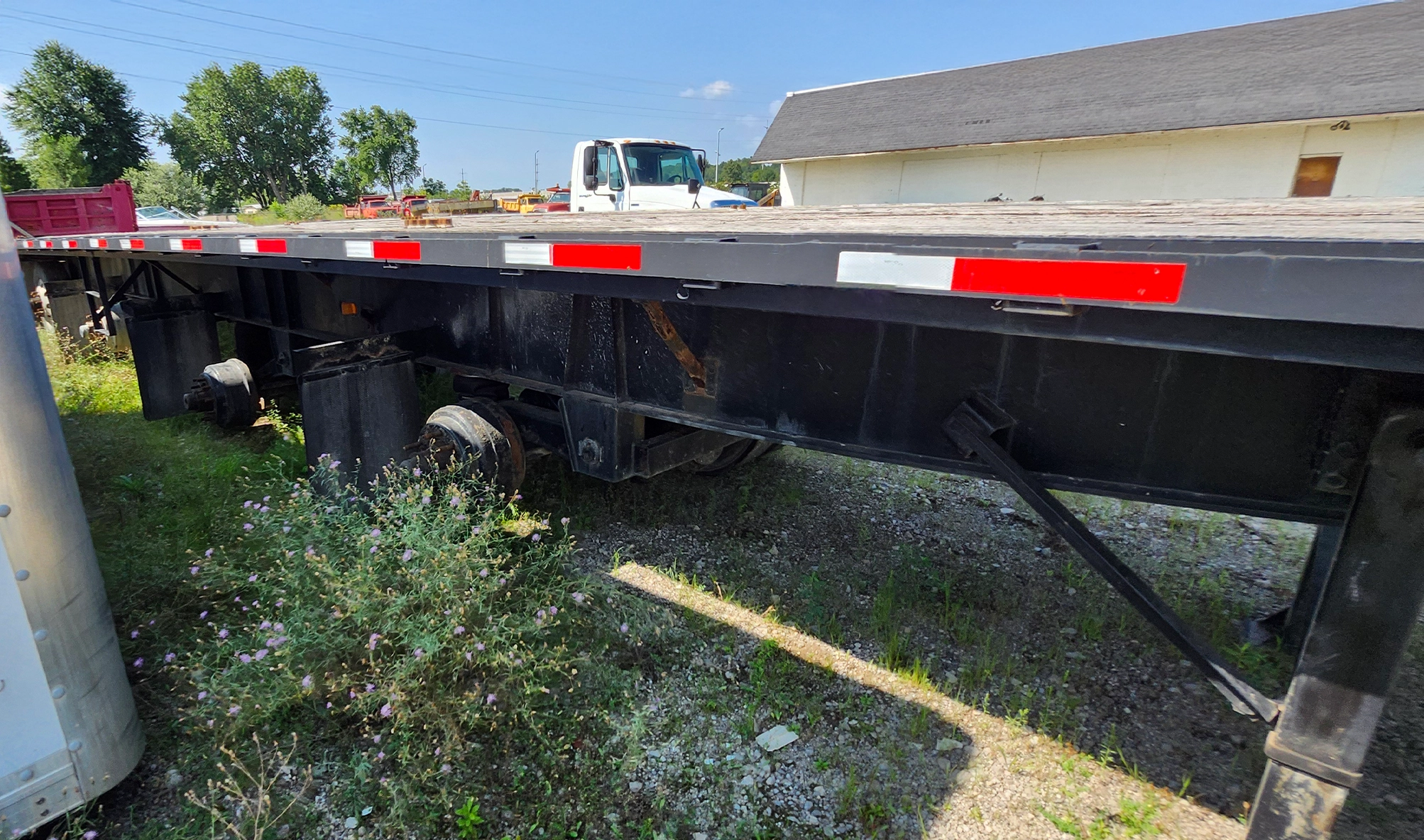

Photos
Buyer Uses / How to Approach This Unit
- Rebuild path: wheels/tires, wheel-end service (caps/bearings/seals per inspection), brake inspection/adjust, lighting test/repairs, surface prep + repaint of frame members, deck cleaning and selective board replacement as needed.
- Core / Parts donor: suspension components, landing gear assembly, rub rails/stake pockets, hardware/brackets.
- Deck donor: intact boards suitable for reuse/board swaps.
Included With Sale
- Trailer as pictured (as-is / where-is).
- VIN plate present on unit.
- Title status per seller records (provide at sale if applicable).
Inspection & Pickup
- Inspection by appointment; buyers welcome to bring a mechanic.
- Buyer responsible for transport; yard assistance available by appointment.
Sold as-is / where-is with no warranty. Information reflects labels on the trailer and visible conditions in supplied photos at the time they were taken.
